PROFINET Modules

PROFINET Device Module for ControlLogix®

ILX56-PND

The ILX56-PND PROFINET Device Module allows Rockwell Automation® ControlLogix® processors to communicate on a PROFINET RT protocol network supporting up to 1440 bytes of cyclic I/O data.

Combined with the use of multiple I/O connections back to the ControlLogix processor, this module provides data update rates that will meet even the most demanding of PROFINET RT applications.

In addition, with the use of the PLX50 Configuration Utility you have advanced features such as custom-built Add-On Routines and User Defined Data Types (UDTs) to minimize the amount of time and effort in getting a ControlLogix PAC operating on a PROFINET RT network.

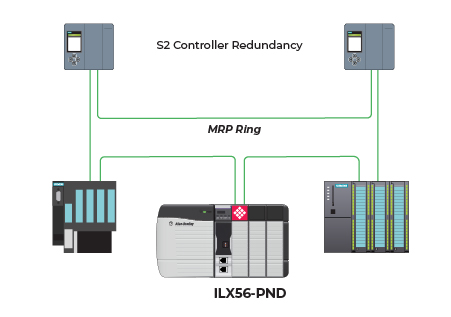

The ILX56-PND also supports media redundancy (using the Media Redundancy Protocol – MRP) as well as PROFINET Controller redundancy (using S2 Controller Redundancy).

Abbildungen

Click on image(s) to enlarge
Drag with the mouse. Click for close.

Funktionen und Vorteile

  • Remote diagnostics via configuration utility
  • PROFINET RT Device supporting up to 1440 bytes of Input/Output Data
  • Supports Acyclic parameter data exchange
  • Add-On Profile and custom Add-On Routines and User Defined Data Types provided to allow for seamless integration to Studio 5000
  • Support for S2 Redundancy applications

Technische Daten

PROFINET RT Device Specifications

Specification

Description

PROFINET Device Support

PROFINET RT Device

Input/Output

Maximum 1440 Bytes (input/output) per device

Minimum Device Interval

2ms

Conformance

Certified to PROFINET Conformance Level B

Redundancy

Higher availability through Media Redundancy Protocol (MRP) ring redundancy.
PROFINET S2 Device Redundancy

Hardware-Spezifikationen

Specification

Description

PROFINET Interface

100/1000 MB with MRP (Client)

Power Supply

600 mA @ 5Vdc
2 mA @ 24 Vdc

Dimensions

Standard 1756 Single-slot module

Burst

EN 61000-4-4, 2 kV, 5 kHz

Surge

EN 61000-4-5, 2 kV Common mode, 1 kV differential mode

ESD

EN 61000-4-2, 4 kV contact, 8 kV air, 4 kV indirect

Radiated/Conducted Immunity

EN 61000-4-3, 10 V/m, 30...1000 MHz, 80% AM, 1 kHz sine wave
EN 61000-4-6, 10 V, 0,15...80 MHz

Radiated/Conducted Emission

EN 55011 Class A

Vibration/Shock (operating)

IEC 600068-2-6, 10-500 Hz, ± 0,75 mm, ± 2 g, 1 Octave/min
IEC 600068-2-27, 30 g, 11 ms

Operating Temperature

0°C to 60°C (32°F to 140°F)
ILX56-PND-CC -25°C to 70°C (-13°F to 158°F)

Relative Humidity

5 to 95% (non-condensing)

Minimum Software Rev

Studio 5000 v30 and above
