802.11abgn Weatherproof IP67 Fast Industrial Hotspot

802.11abgn Weatherproof IP67 Fast Industrial Hotspot


The ProSoft Technology Weatherproof IP67 Fast Industrial Hotspot (RLX2-IHNF-W) is designed for harsh environments and features an IP66/67 rating. It is water-tight for use in extreme weather applications such as offshore oil rigs, and dust-tight for use in mining applications. It operates in the 2.4 or 5 GHz bands, including DFS channels, and is good for applications up to 2 mi. / 3.2 km.

The Hotspot supports Access Point, Repeater, and Client modes. The 802.11n technology delivers fast data rates up to 300 Mbps. This provides excellent packet- per-second performance and robust communications in rugged industrial environments. The 802.11n MIMO & Channel bonding supports demanding wireless applications such as Ethernet I/O and high-resolution video.

The included IH Browser configuration and monitoring software allows the user to view network topology, assign IP addresses, monitor network diagnostics, and update radio firmware. The optional OPC Diagnostic Server is ideal for managing long-range wireless SCADA networks.


Click on image(s) to enlarge
Drag with the mouse. Click for close.

Funktionen und Vorteile

  • 802.11n MIMO & Channel bonding supports demanding wireless applications such as Ethernet I/O and high-resolution video
  • EtherNet/IP™-or Modbus®-based PLCs/PACs can use message instructions to read diagnostic information from the radios, helping to reduce down time when troubleshooting wireless network problems
  • 802.11i, WPA-2 Personal/Enterprise using 128-bit AES encryption ensures secure networking
  • RADIUS security ensures secure networking with advanced authentication and encryption
  • Virtual Local Area Networks (VLAN) allow for secure network segmentation
  • Quality of Service (QoS) provides data prioritization for I/O control devices, video, data, etc.
  • Ultra-Fast Roaming (under 10 ms) maintains seamless, high-speed connections to one or more devices on moving equipment and machines (such as cranes, AGVs, and carriers) as they travel between access points
  • IGMP Snooping and Packet Filtering optimizes UDP multicast traffic for superior EtherNet/IP I/O communications
  • Supports the ability to communicate with multiple Ethernet devices when used with existing third-party wireless infrastructures
  • Supports AeroScout RTLS (real-time location services) tagging by passing signals from tags to the network
  • Supports Power over Ethernet (PoE) to reduce cabling costs
  • Connect serial networks (Modbus, DNP 3, etc.) over 802.11 wireless networks
  • Supports SNMP
  • Simple local and remote configuration, monitoring, and wireless network diagnostics

Technische Daten

Radio Specifications





Frequency band (Varies by country)

2.412 GHz to 2.462 GHz (FCC)

2.412 GHz to 2.472 GHz (ETSI/NTRA)

1 to 11

1 to 13


5.150 GHz to 5.250 GHz (FCC/ETSI/NTRA)

5.260 GHz to 5.350 GHz (NTRA)*

5.660 GHz to 5.700 GHz (FCC/ETSI)*

5.725 GHz to 5.850 GHz (FCC)

*DFS channels with RADAR detection

36 to 48

52 to 64*

132 to 140*

149 to 165

Wireless standards

802.11n, 802.11a, 802.11g

802.11h (DFS), 802.11i (Security), 802.11e (QoS)

802.1Q (VLAN), 802.3af (PoE), IGMPv2

Transmit power (Programmable)

*Subject to regional regulatory limits

22 dBm @ MCS0, MCS8 (802.11an/gn)

17 dBm @ MCS7, MCS15 (802.11an/gn)

22 dBm @ 6 Mbps (802.11a/g)

17 dBm @ 54 Mbps (802.11a/g)

*Max power in NTRA model is 20 dBm in both 2.4 GHz and 5 GHz

Antenna Impact:

3 Antennas/MIMO: Use values above

2 Antennas: Subtract 3 dB from values above

1 Antenna: Subtract 5 dB from values above

Channel data rates 802.11n

MCS0 through MCS15,

1 Channel or 2 Channels with 1 Stream or 2 Streams


1 Channel

2 Channels




6.5 Mbps

13.5 Mbps


1 Stream


65 Mbps

150 Mbps




13 Mbps

27 Mbps


2 Streams


130 Mbps

300 Mbps





11, 5.5, 2, 1 Mbps

54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbps

Receiver sensitivity (Typical)

-92 dBm @ MCS0, MCS8 (802.11an/gn)

-70 dBm @ MCS7, MCS15 (802.11an)

-74 dBm @ MCS7, MCS15 (802.11gn)

-92 dBm @ 6 Mbps (802.11an/gn)

-74 dBm @ 54 Mbps (802.11a)

-78 dBm @ 54 Mbps (802.11g)


WPA2 Enterprise – 802.11i AES w/RADIUS [PEAP, TTLS, TLS, EAP]

WPA2 Personal – 802.11i AES w/ Passphrase Legacy WPA TKIP, WEP support

MAC ID filter




Hardware Specifications





Die-cast aluminum with pole mount

Dimensions (H x W x D)

11.5 x 7.0 x 2.75 in

29.2 x 17.8 x 7.0 cm


IEC 60068 2-27 (20G, 3-Axis)


IEC 60068 2-6 (5G, 10 to 150 Hz)

Ethernet Port

(1) water/dust tight

10/100/1000 Base-T connector, shielded RJ45 IEEE 802.3, 802.3u, 802.3x, 802.3af, Passive PoE

Not 802.3at/PoE+ compatible

Antenna Port

(3) N connectors


3.9 lbs (1.6 kg) less cables and pole mounting bracket



Operating Temperature

-40°F to 167°F (-40°C to 75°C)

-40°F to +158°F (-40°C to +70°C), RLX2-IHNF-W Series B, C and D only


Up to 100% RH

External Power

10 to 24 VDC

Power over Ethernet

802.3af compliant

Peak Power Consumption

< 9W (Series B), < 10W (Series C), < 6W (Series D)



ATEX Letter of Conformity 106,36 kB Zuletzt geändert 12.05.2022
Declaration of Conformity (RoHS/CE) 551,10 kB Zuletzt geändert 18.05.2020
UL/cUL: Class 1, Div 2 405,05 kB Zuletzt geändert 14.09.2020
Country Approval - Australia 307,64 kB Zuletzt geändert 31.01.2019
Country Approval - Canada 240,65 kB Zuletzt geändert 27.07.2020
Country Approval - Chile 392,47 kB Zuletzt geändert 03.07.2017
Country Approval - Ecuador 225,20 kB Zuletzt geändert 03.03.2020
Country Approval - Egypt 569,18 kB Zuletzt geändert 25.03.2020
Country Approval - Kuwait 406,26 kB Zuletzt geändert 02.07.2018
Country Approval - Mexico 133,59 kB Zuletzt geändert 04.10.2021
Country Approval - New Zealand 251,56 kB Zuletzt geändert 31.01.2019

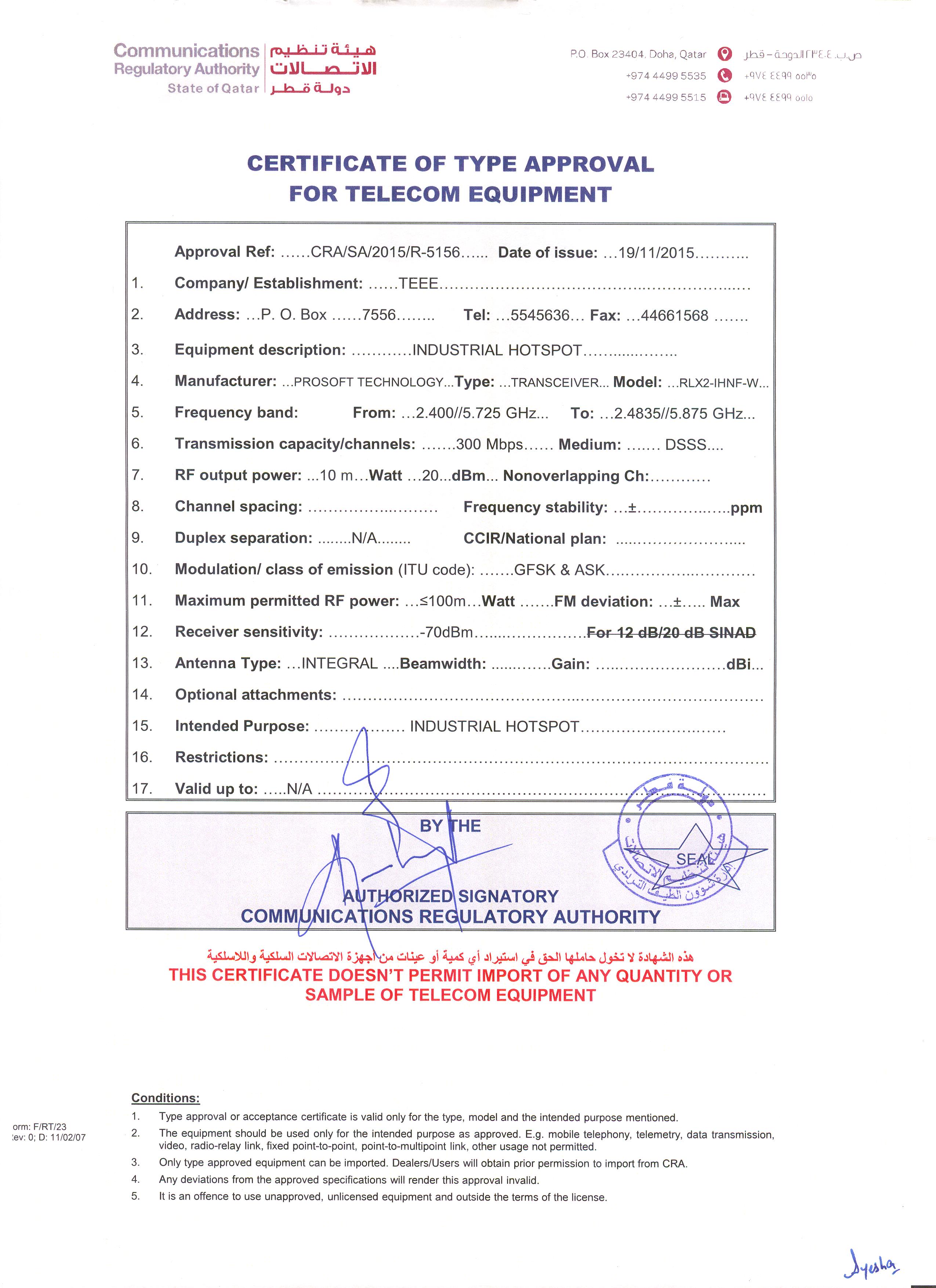

Country Approval - Qatar 735,08 kB Zuletzt geändert 24.02.2016
